Factory Supply Good Quality Fire Recuse Tripod Emergency Rescue Safety Tripod for Firefighting
Keywords:
Factory Supply Good Quality Fire Recuse Tripod Emergency Rescue Safety Tripod for Firefighting
Category:
Firefighting Equipment & Accessories
Tel:
Description

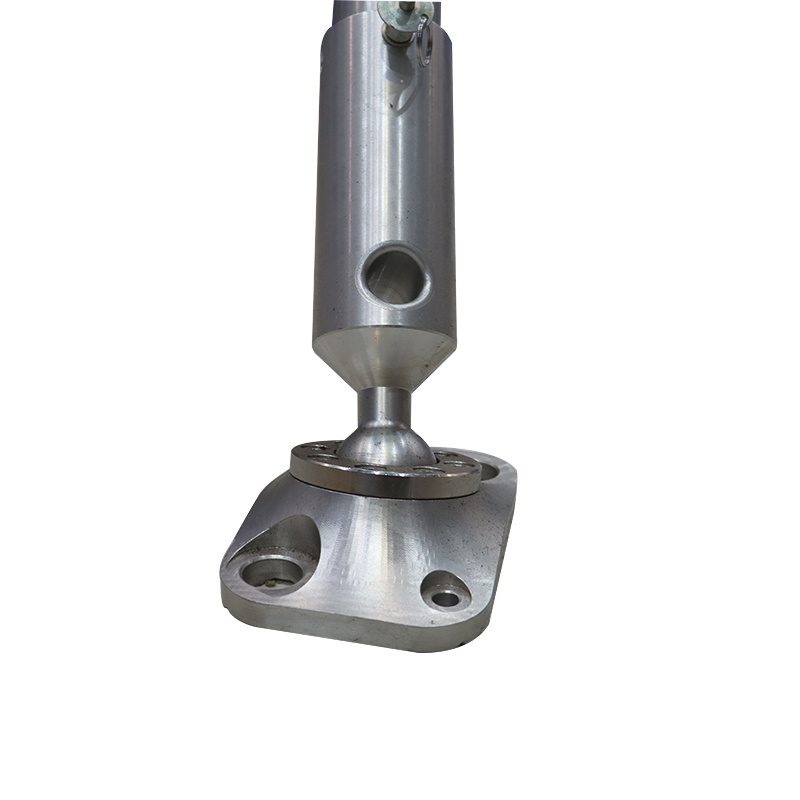

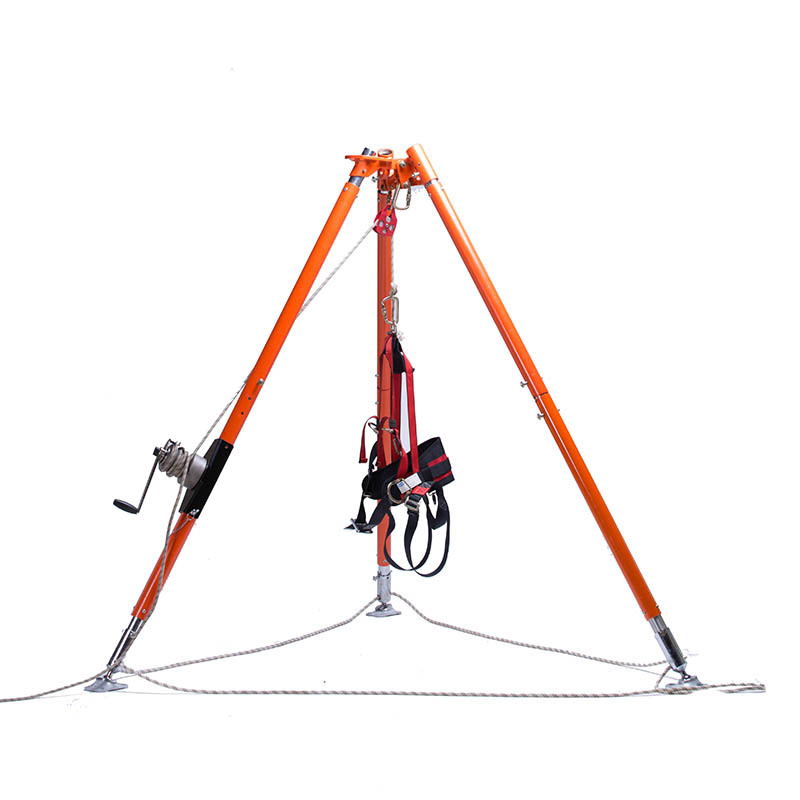

The rescue tripod is an extensible support made of high-strength light alloy. It is small in size, light in weight, easy to carry and use, and can be quickly erected to rescue the injured and trapped people at the accident site.Appearance: The surface of the tripod is smooth and free of burrs, and the surface of the black metal is treated with rust prevention. The three supporting feet of the tripod are equipped with anti-skid feet and can be installed with positioning ropes.

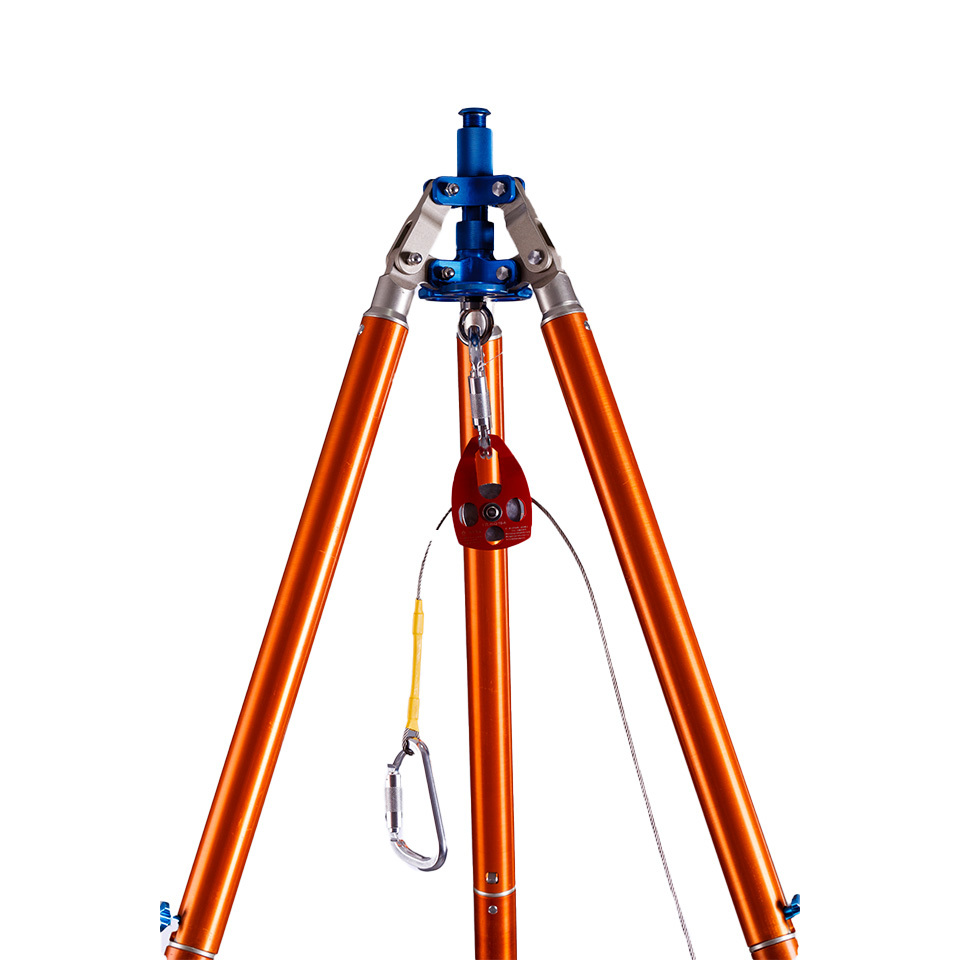

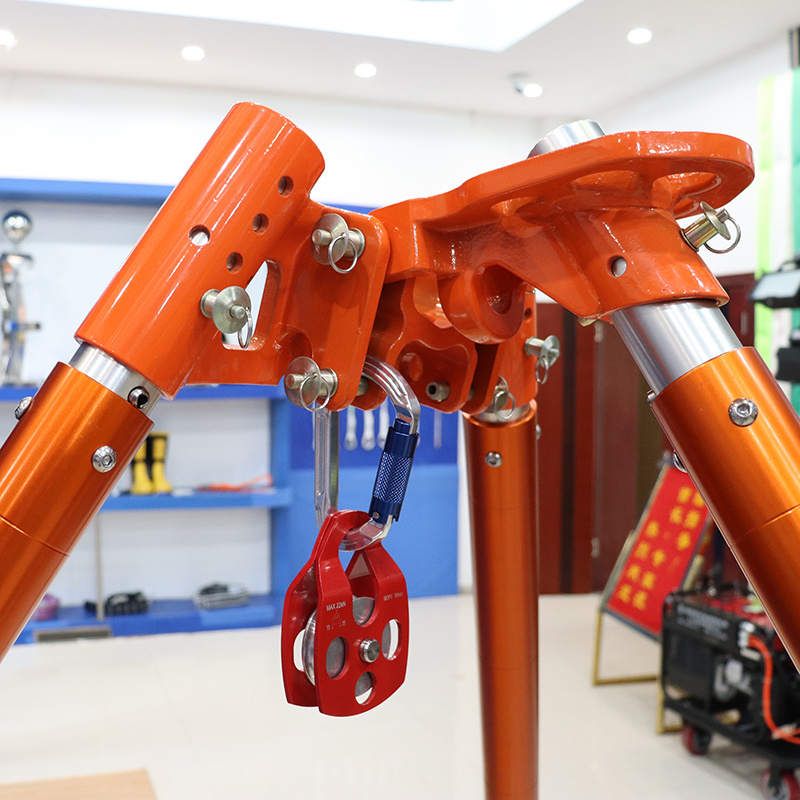

The anti-skid feet are equipped with stop steel drill holes. The tripod is equipped with a manual winch and can be installed on any support leg of the tripod.
The anti-skid feet are equipped with stop steel drill holes. The tripod is equipped with a manual winch and can be installed on any support leg of the tripod.
Curb weight (kg) | 28.15 (including tripod, manual winch, wire rope, pulley device, safety hook and positioning rope). |
Rated load mass (kg) | 200 |
Merging length (m) | 0.9 |
Maximum height under working condition (m) | 2.0 |
Tripod erection time | can complete the erection of the tripod within 45s |
Tripod spreading angle (°) | 0~40 adjustable |
Wire rope length of manual winch (m) | 30.5 |
Wire rope diameter (m) | 4 |
Winch handle operating force (N) | 132 |
